SPECIFICATIONS

Advantage: Double fuel tray layer, prove leakage

Application: Hotel

Brand Name: DUTRIEUX,Inno-living

Capacity: 12.5 liter

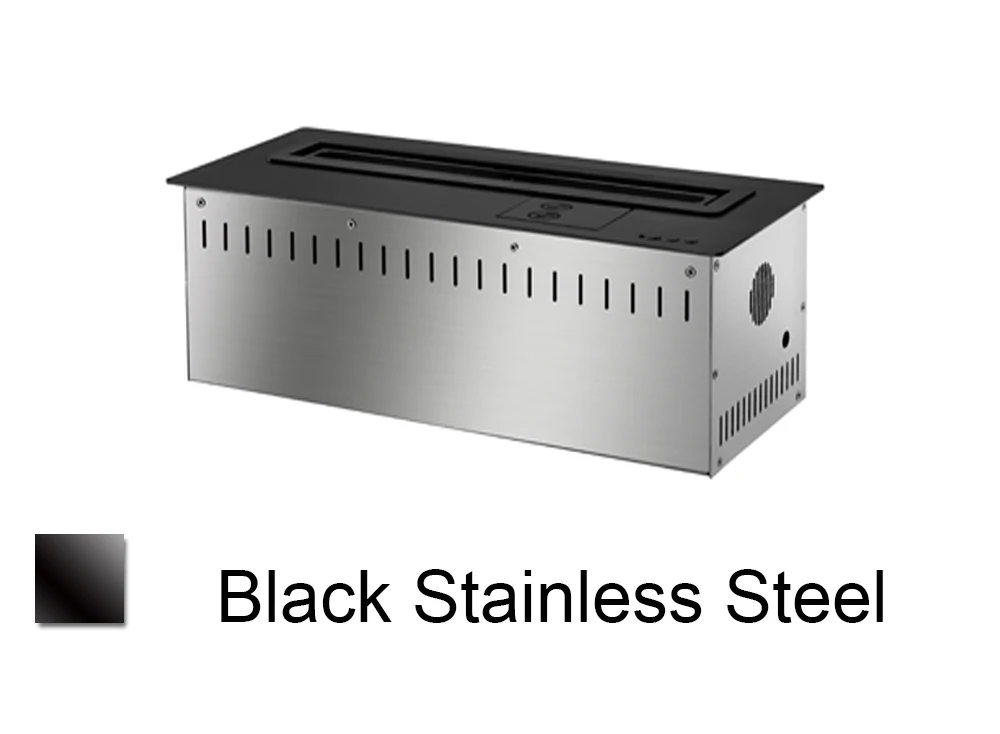

Color: Silver /black

Design Style: Modern

Finish: Brushed SS

Function: With Remote Control

High-concerned chemical: None

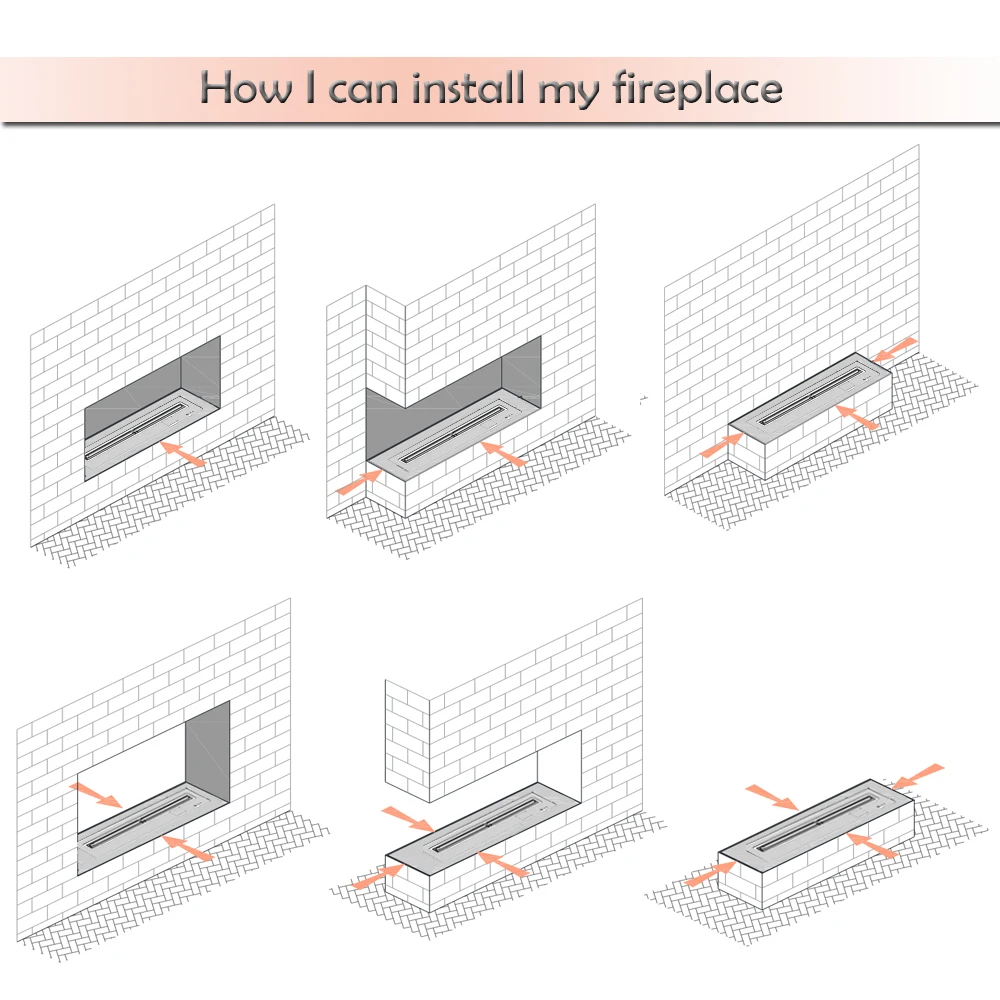

Installation Type: Insert

Keyword: wall decorative fireplace

Material: Steel,304#Stainless steel

Model Number: ILFP-SR48

Origin: Mainland China

Place of Origin: Zhejiang, China

Project Solution Capability: graphic design

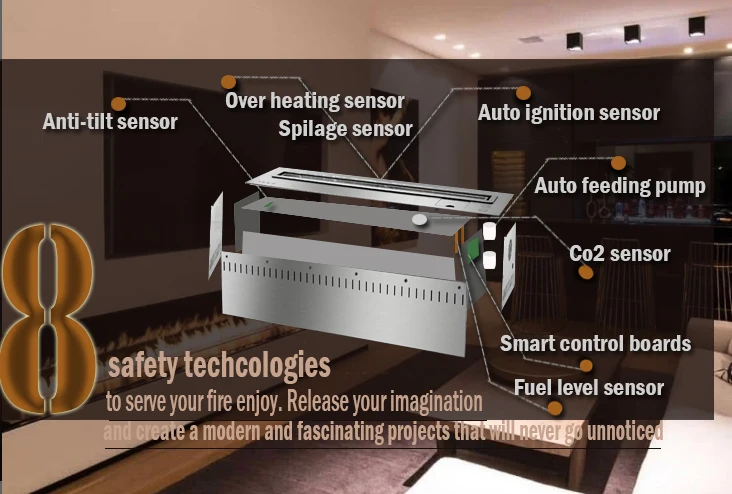

Safety: CO2 Sensor, shake off sensor etc, smart fireplace

Size: 1220mm L x 193mm W x 168mm H, 1220mm L x 193mm W x 168mm H

Type: Ethanol Fireplaces

Use: indoor

Voltage: 100-240V Global Workable

Warranty: 5 years

#304 SS Entire Unit

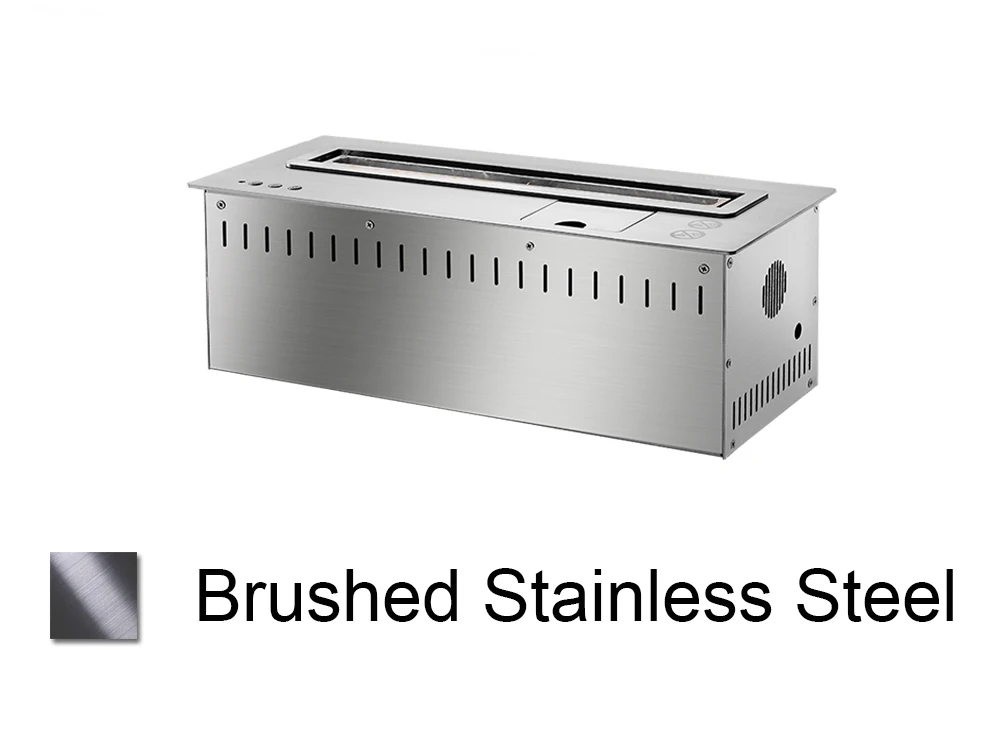

Top grade brushed #304 stainless steel

3mm thickness stainless steel panel to be used for the fireplace body

with more than 65 procedures in processing to present you a final high end master piece

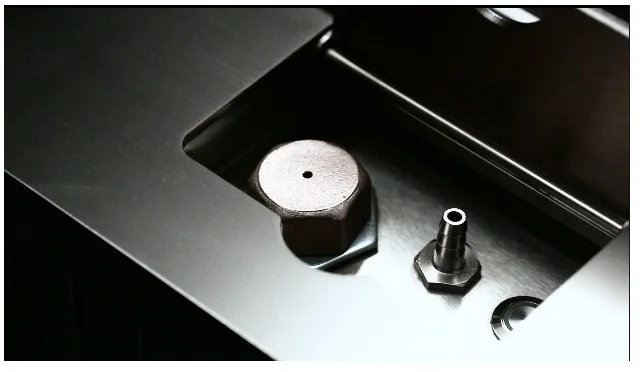

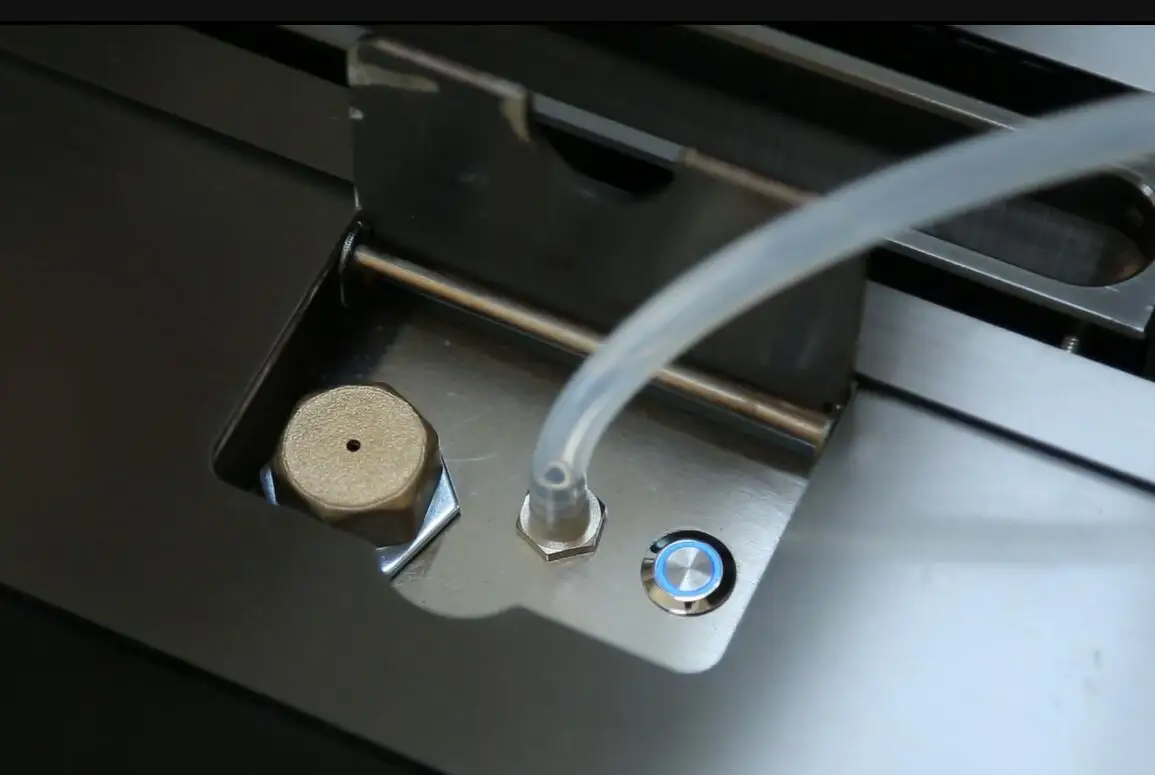

Auto Filling Function

With auto filliing function, press button once , the fireplace will start auto filliing , once the fuel level reaches max line, the filliing work will stop . The fireplace is ready to use .

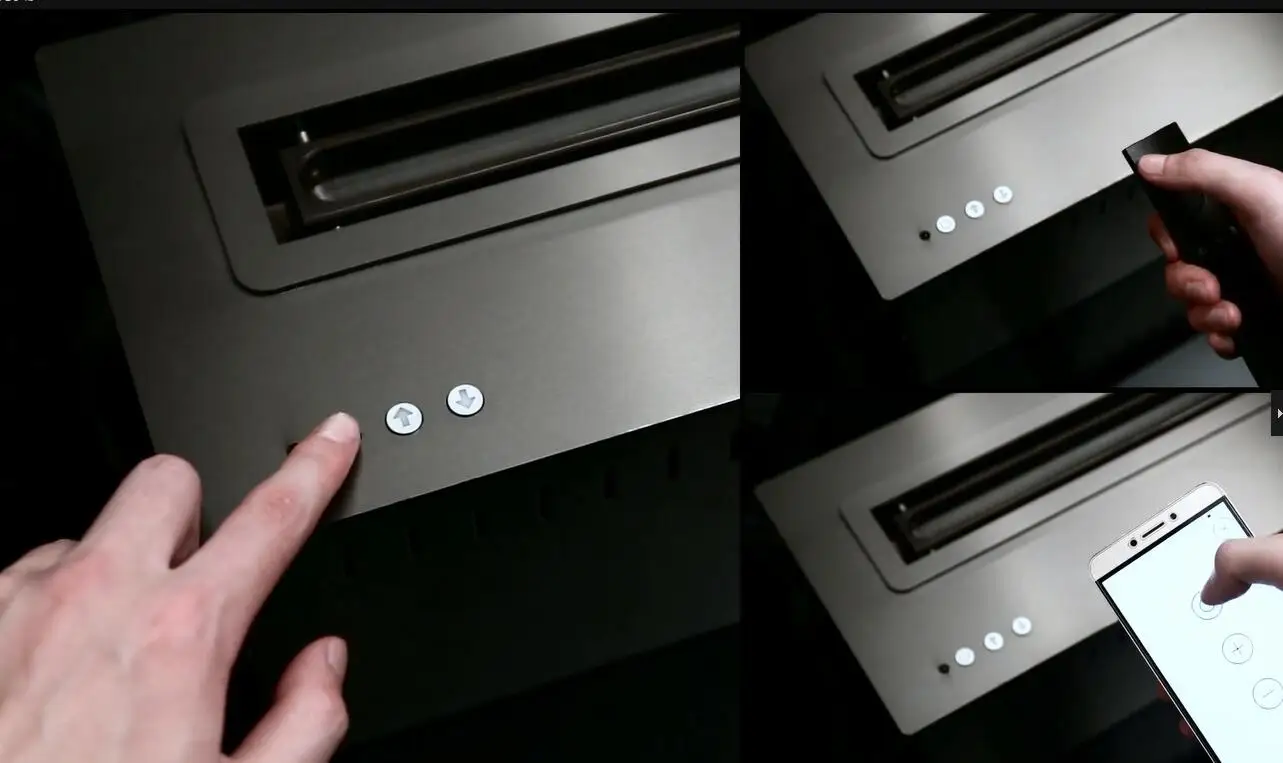

Multiple Operation Options

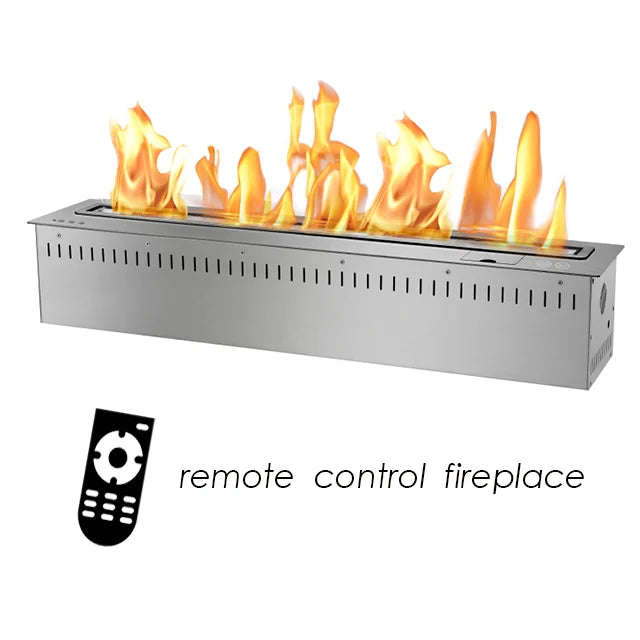

A. Remote control function

B. APP control on smart phone with home wifi connected

C. Direct ignition by pressing the power button on fireplace

D: Google &Alexa voice control

Model No.	Size	Flame length	Capacity	Fuel Consumption
ILFP-SR18	457.2 L x 193mm W x 168mm H	329mm	0.5 L~0.6 L/H	4666W ~ 8000W
ILFP-SR24	610mm L X 193mm W x 168mm H	482mm	0.7~0.8 L/H	4666W ~ 5333W
ILFP-SR31	800mm L x 193mm W x 168mm H	672mm	0.7~1.2 L/H	4666W ~ 8000W
ILFP-SR36	908mm L x 193mm W x 168mm H	780mm	0.9~1.4 L/H	6000W ~9333W
ILFP-SR48	1220mm x 193mm W x 168mm H	1092mm	1.4~2 L/H	9333W ~ 13333W
ILFP-SR60	1524mm L x 193mm W x 168mm H	1396mm	1.8~2.9 L/H	12000W~19333W
ILFP-SR72	1829mm L x 193mm W x 168mm H	1701mm	1.9~3.3 L/H	12666W~22000W

Model No.	Size	Flame length	Capacity	Fuel Consumption
ILFP-SR84	2100mm L x 193mm W x 168mm H	1972mm	2.4~3.9L/H	16000W~26000W
ILFP-SR96	2438mm L x 193mm W x 168mm H	2272 mm	3.4~4.5 L/H	22666W~30000W
ILFP-SR98	2500mm L x 193mm W x 168mm H	2372mm	3.7~4.7 L/H	24666W~31333W
ILFP-SR120	3048mm L x 193mm W x 168mm H	2920mm	4.7~5.7 L/H	31333W~38000W
ILFP-SR140	3556mm L x 193mm W x 168mm H	3428mm	5.4~6.7 L/H	36000W~44666W
ILFP-SR550	Dia 550mm*167mm H	220 mm Dia	0.7~1.2 L/H	4600W~8000W

SPECIFICATIONS FOR 31 inch paramter form
Size of burner	1220mm L x 193mm W x 168mm H	Function	Automatic ignition/extinction
Flame length	1092mm			Electronic heat detectors
Capacity	8.5 liter			Heavy shake sensor
Fuel Consumption	0.6 L~1.6 L/H			Auto-filling fuel
Heat output	4000W ~ 10600W			Flame adjustment
Packing size	118*30*32CM H			CO2 density alarm
G.W.	36 kg			Anti-interference
				WIFI function
Technical data as follow :					smart home dry contact
Voltage	100V~240V			Children lock
Frequentie	50HZ/60HZ
Electrical consumption	50W			Linkage function
Inside burner	DC 24V/2A

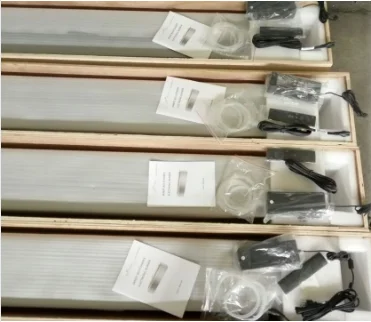

Packing & Delivery



Size	140*30*32cm
Weight	36kg
Packaging Details	Steel corner protect eight corner	Including pipe,adaptor,instruction,remote controller



Answer for FAQ for Smart Ethanol Burner

1, Can not ignite the burner ?
Answer: Please check if the burner has been filled with enough fuel .
Minimum Fuel Capacity
18 inch - 1 Liter
24 inch - 2 Liters
30 inch - 3 Liters
36 inch - 4 Liters
48 inch - 5 Liters
60 inch - 6 Liters
72 inch - 7 Liters
Please check if operation is correct : Press power button TWICE to ignite the burner
2, Why the flame is not on right after the ignition rod getting red?
Answer: Because it will take time to let the fuel pump into the burning chamber, so when the ignition rob getting red, the fuel is
still not arrive at the chamber, please don't turn off the burner at this situation, just wait, the ignition rob will getting red
for three times. When the fuel run into the chamber, it will be light up the burner. The ignition process will take about 2~3
minutes upon the burner size. Long size burner take longer time, short size burner take shorter time.

3, Why the flame is full over the chamber at beginning, but later on it become to a small flame in center of the chamber only?
Answer: We have set the burner a ignition beginning model, that is only pump very few fuel into the chamber at first 4~5 minutes.
This setting is for safety consideration that no overflow in the chamber. At beginning the burning chamber temperature is low, and
it take time to ignite successfully, so the fuel consumption is also low. Even setting like this, there are still lots of fuel
inside the chamber before fire is on, so as soon as the fire is on, the flame will full over the chamber as fuel is all over the
chamber. Right after the fuel is consumption, the flame will stay at our define setting for beginning at the smallest flame size.

4, Why the fire is not become large after adjust the flame size to largest model (After pressed the + button)?
Answer: We have set the burner a ignition beginning model, that is only pump very few fuel into the chamber at first 4~5 minutes.
After 4~5 minutes, the flame adjustment will be reflected. For example you setting to largest flame size as soon as you start the
burner, it will change to large flame size after 4~5 minutes, no need consumer to press + button again.

5, Why the arrow button blink for 10 minutes after turn off the burner? And no response to any operation on the button or remote control?
Answer: This is for safety consideration as it's dangerous to light up the burner again if the burning chamber is high
temperature. We have setting the safety cool down model that no response (cannot restart the burner ) for 10 minutes after the
burner turned off. And have the arrow button blink for 10 minutes to identify it safety cool down status.
If consumer want to restart the burner, please wait the button blink stop.
If no need to restart the burner, just let it blink, the burner actually already turned off now.

6, Why the flame is amesiality of the chamber, the another end without flame?
Answer: Please make sure the burner sitting in horizontally, if it's not sitting in horizontally, the flame will be deflected to
the lower end.
Also, please make sure the flame is not affected by the wind.
7, Why the flame is light on in right chamber but the left side is still under ignition for burner size longer than 48"?
Answer: Because the right chamber is more closed to the fuel tank, so it take less time to pump in fuel then ignited earlier than
the left chamber which is far from fuel tank. Please wait for about 4~5 minutes.
8, Why the fuel refilling button is off work when the burner is on?
Answer: It's the safety setting that cannot fill fuel when the burner is igniting or burning.
